DETAILS

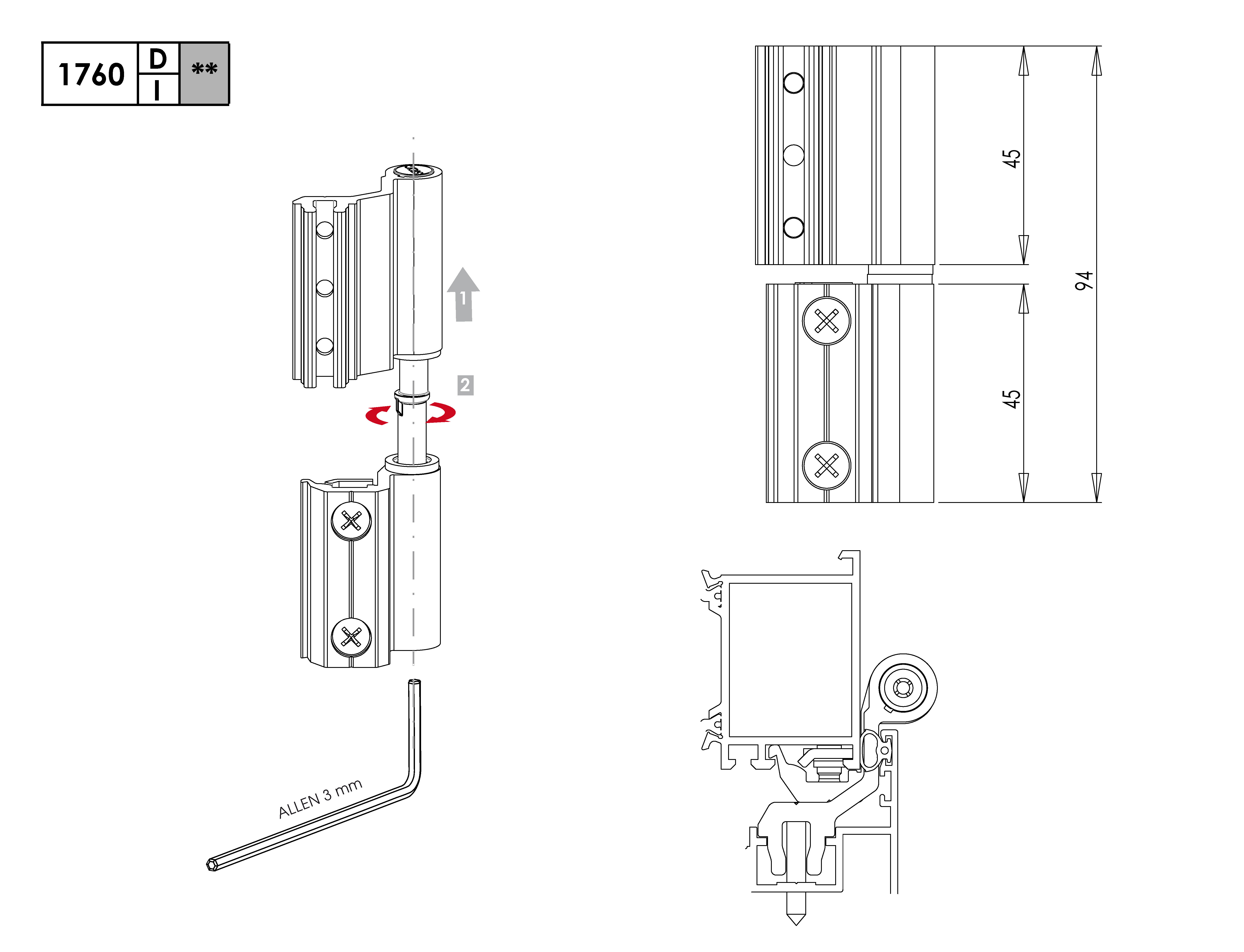

A hinge for 16 mm groove casement doors and windows.
TECHNICAL CHARACTERISTICS:
-A two part reversable hinge. The hand can be changed simply by changing the casings and the bolt to the other side.

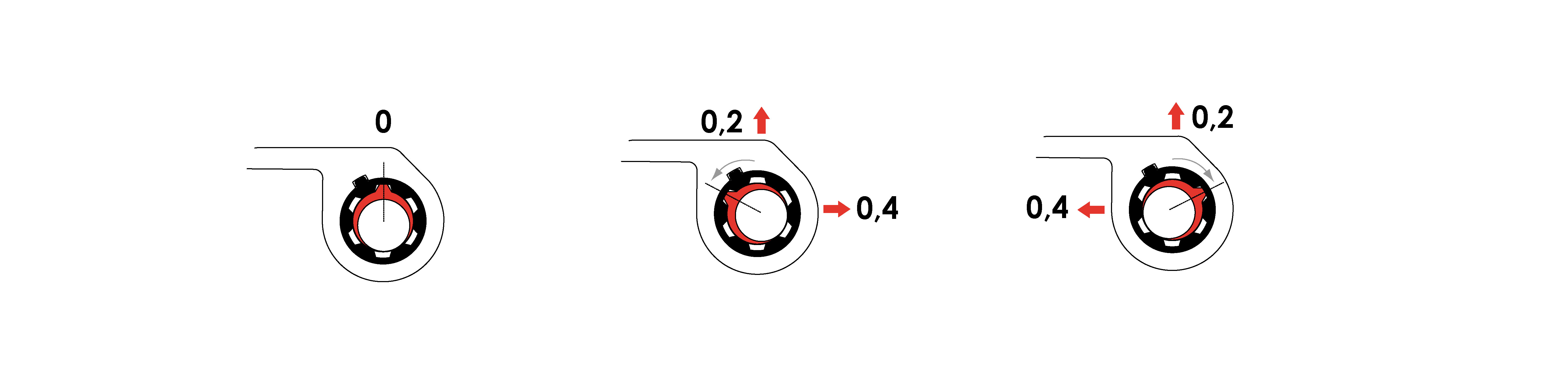

-The bolt is off-set allowing a tightness adjustment of 0.8 mm.
-Two hinges will support sashes up to 80 kgs.
Opening direction
Product valid for right-hand opening
Colour and finishes
White or black lacquered finish
RAL colour chart fisnishes
Regulation
The reference supports adjustment
