TILT & TURN DOOR

EXCLUSIVE MECHANISM THAT ALLOWS TO ADAPT A TILT & TURN WINDOW AS AN ACCESS DOOR

Currently a high percentage of balcony window systems on the market are only accessible from the interior of the home as the blocking of the barrel with the lock stops external operation of the handle and the hardware.

For a long time now, the closures market has been demanding new window systems which can be accessed from both the inside and the outside of the home whilst still allowing a weather-proof seal unlike traditional standard doors.

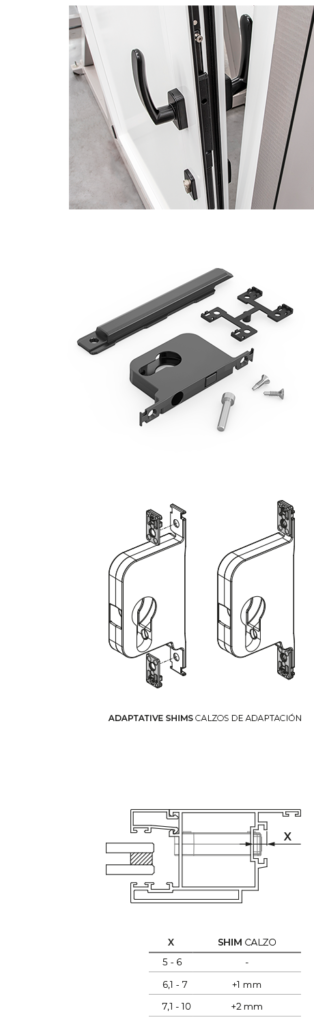

At STAC we are constantly researching and developing new solutions so as to satisfy the demands of our clients. To this end, we are pleased to present our latest and most innovative product, the tilt & turn door blocking sequencer. This is a mechanical device which allows a balcony window to take on the role of a door in both tilt & turn and side-hung systems.

SECURITY COMES FIRST


The sequencer is a device external to the handle which allows the sash and hardware to be blocked from both sides of the balcony window via a Euro cylinder lock. The blocking takes place in a part of the hardware which is inaccessible from the exterior, thereby reducing the possibility of break-ins and drastically increasing security in tilt & turn and side-hung systems.The sequencer has undergone rigourous testing to check its ability to resist attempted break-ins using pre-defined tools. The results obtained were highly satisfactory.

3x BLOCK

The tilt & turn hardware allows a balcony window to be opened in two
defined wayss:

  • with the handle at 90º for standard full opening or logical tilt
  • with the handle at 180º for standard tilt or logical full opening

This new sequencer allows full blocking of the hardware in:

  • closed position
  • standard tilt position
  • logical tilt position *

* Highly advisable in building for public use
  (public buildings, schools, hospitals,…).

AWW TESTING

Balcony windows are more versatile and adapt better to the spaces of a home than door systems. They also have far superior thermal and acoustic insulation properties thanks to the high levels of weatherproofing provided by the hermetic seal and perimeter hardware. This new mechanism has achieved high ratings in the AWW tests, which classify hardware in terms of air permeability, water tightness and wind resistance.

SUITABLE FOR ALL TYPES OF LOCATIONS

Balcony doors are perfect for accessing a balcony or terrace. Low doorsteps, excellent noise reduction and energy efficiency make balcony doors suitable for installation in the majority of settings.

The zamak components have been treated to guarantee corrosion resistance greater than 240 hours in a saline mist chamber in compliance with UNE-EN 1670 regulations and achieved a rating of Grade 4. This provides high corrosion resistance and means that they can be used in zones with severe climatic conditions.

COMPATIBLE WITH STAC HARDWARE

STAC offers EVO-SECURITY hardware which reduces the possibility of break-ins and increase security in casement and Tilt & Turn systems certified to RC2 level. The hardware has characteristic mushroom security cams with closing adjustment and anti-tamper closures  which increase the efficiency and protect against intruders.
