Supplementary LS200+

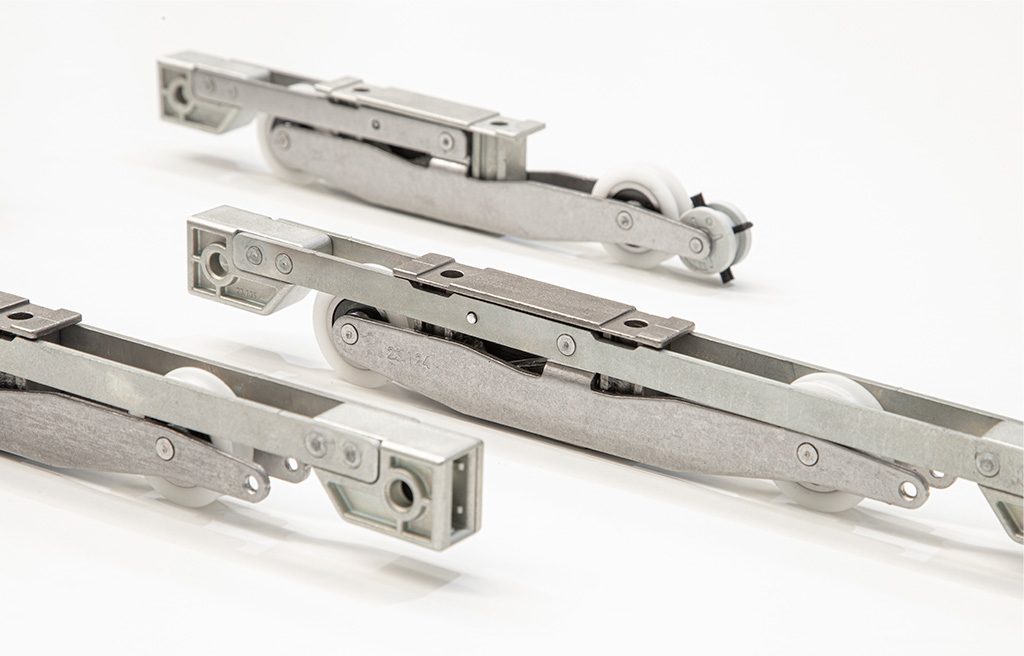

LS200+ supplementary bogie

The aluminium enclosure market requires lifting sliding systems with a reduced visible profile section that provides a larger glazing surface, improved performance in large openings and easy manoeuvrability by incorporating lifting hardware systems that allow optimal sash sliding.

Our LS200 lift & slide hardware system guarantees a smooth, silent and effortless sash sliding, obtaining open spaces through the different applications of up to 6 sashes with different combinations.

By upgrading to a supplementary sliding bog, the LS200 hardware system is able to achieve a higher load range, allowing the lift & slide system to reach a weight of 200 – 300 kilograms per sash, making it the best option on the market for its operating range in terms of performance.

» Multiple set-ups

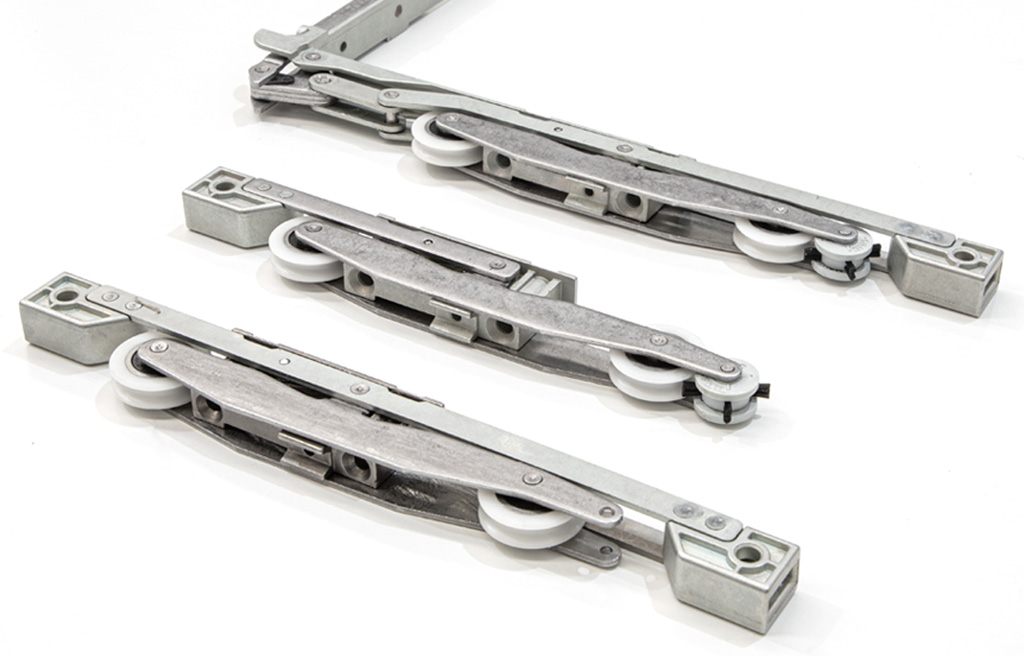

The sliding bogies are available in various configurations to suit the specific needs of each user.

  • For loads ≤ 200 kg / sash, you need to install the front and rear units
  • For loads between 200 – 300 kg / sash, you need to install the front and rear units and two supplementary bogies (LS200+).

» AISI 304 Resistance and durability

We have developed this product in AISI 304 stainless steel to guarantee a long-lasting and reliable durability.

Thanks to this we can ensure that all our customers have an exclusive fitting for the most demanding applications:

  • Installations on the seafront where the environmental salinity is so high that it is impossible to warrant any other material or coating.
  • Enclosures for public use such as hotels, restaurants, … that support a high frequency of use and durability over time.

» Adaptation shims

We have developed polyamide adapting shims for the various channels available in this type of series. The shims allow the LS200+ system to be fully compatible with profile groove widths of 16, 18 and 22 millimetres.

Furthermore, the shims made of PA6 polyamide with 10% glass fibre retain the thermal break.

» Damping system

The SOFT-LIFT® sash damping system prevents the handle from recoiling abruptly during the lifting process, providing greater safety for anyone operating the lift-up slide.

The maximum dimensions and weights stated are only valid if the profiles used to make the window have sufficient mechanical strength.
